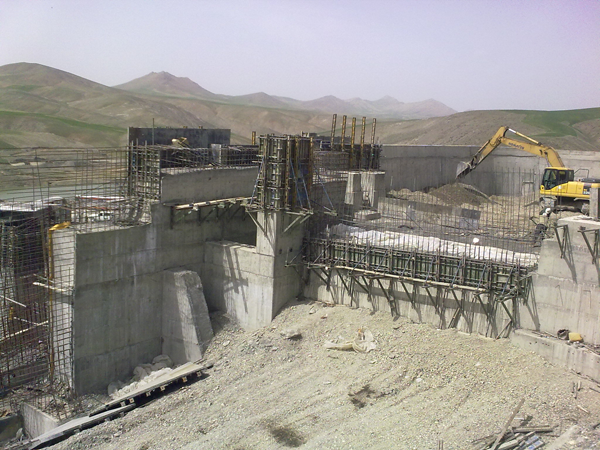

Siasak Dam is located 7 km southwest of Divandareh. The purpose of its construction is to supply agricultural water and drinking water. The dam of Siazak-Divandareh has a reservoir volume of 230 million cubic meters and a spill capacity of 1800 cubic meters per second. The annual water in the second phase of operation is 143 million cubic meters, due to the use of hydraulic reservoir pressure in the transmission system, its power plant has been eliminated.
There is also a pebble dam that has a height of 84 meters and a crown length of 285 meters.
Design, procurement and construction, transportation and installation of hydromechanical and electrical equipment of Siyazakh Reservoir Dam
Main Employer: Kurdistan Regional Water Company
Supervisor: Water Engineer Consulting Engineers
Employer (Main Contractor): Water Resources Development Co.
Contractor: Faradid Meehan Engineering Company
Date of the contract: 10/1388
Main features description:
1- A series of metal blocking blocks for obstruction of the diversion duct at the calvert input and a series of fixed components for the respective groove
2- A series of roof rails for deep drainage inputs with a series of fixed components and a manual lifting system.
3. A series of overhead system repair valves with four series of fixed parts
4- A series of header valves for entering the irrigation system with a series of fixed parts and the corresponding electromechanical lift system
5. A series of header repair valves for the entrance of the drinking system with three series of fixed parts and a manual lift system
6- A series of metal scraps at the entrance to the irrigation system
7. Four series of metal scraps at the entrance to the drinking water system
8. A series of deep drain metal coatings (pipe and metal sections)
9. A series of metal cover (pipe) irrigation system
10. A series of metal coatings (pipes) of drinking water system
11. A series of sliding shut-off valves as service and emergency drainage dampers with hydraulic lifters
12 - Two Emergency Butterfly Valve Series / Guard with Diameter 1400 mm for Irrigation Valve Valve System with Driving System and Control Equipment
13. A series of emergency butterfly valves / guards with a diameter of 600 mm for the room of the low-flow water supply valves with electric drives and control equipment
14. A series of emergency butterfly valves / guards with a diameter of 700 mm for branching Bijar drinking water with the electric drive control system
15. A series of emergency butterfly valves / guards with a diameter of 500 mm for dividing the drinking water with a control system
16-Two series of needle type valve service - In-Line flow discharge (1200 mm diameter) for valves of irrigation system as service valve with electric drive system and control equipment
17) A series of needle type valve service - In-Line flow discharge (600 mm diameter) for branching room for Bijar drinking water as a service valve with electric drive system. Control equipment
18 - A series of valve type adjustment needle type - Discharge flow inside the pipe (In-Line) with a diameter of 400 mm for the room for dividing the drinking water Divandareh as a service valve with the electric drive system control equipment
19- A series of service valves for vertical discharge (Vertical Sleeve Value) to 600 mm inlet / outlet diameter for river valley valve valves as service valves with metallic casing for pressure switch and electric drive system. And control equipment
20. Two series of overhead cranes as deep-drain valve room cranes
21. Two series of overhead cranes as a repair crane for the valve of water supply
22. A series of roof cranes as a repair crane for the valve system of the drinking water system
23. A series of roof cranes as a repair crane for the valve system of the river supply system
24. A series of gantry cranes as a system for repairing overflow valve valves
25- A series of manual cranes as a system for lifting the roof valves of the irrigation system
26 - Four series sluice valves as overflow system valves with fixed components and related hydraulic lifts
27. A series of original and four-panel displays in the sub-section of the electric power supply and related accessories
28. A set of power and control cables, together with their requirements
29. A series of diesel generators and related accessories
30. A series of dam control panels and related accessories
31. A series of land system and related accessories
32. A series of water-measuring digital measuring systems and four series of discharge measurement systems along with related requirements
33. A series of direct current systems with associated accessories
